High performance polysulphide joint sealants
  • High-performance polysulphide joint sealants
    1. EUROLASTIC TC 30 G
    2. EUROLASTIC TC 30 S
  • Polysulphide waterstops
    1. EUROTEK TK joint tape WHG / LAU
  • High-performance joint profiles
    1. EUROX EDS joint profile WHG
  • Concrete substitutes
    1. EUROREPAIR PC 96 WHG
  • Polysulphide special solutions Surface sealing
    1. EUROTEX TC 97
    2. EUROTEX TC 97 AS

EUROLASTIC TC 30 G

Pourable, 2-component polysulphide-based joint sealant

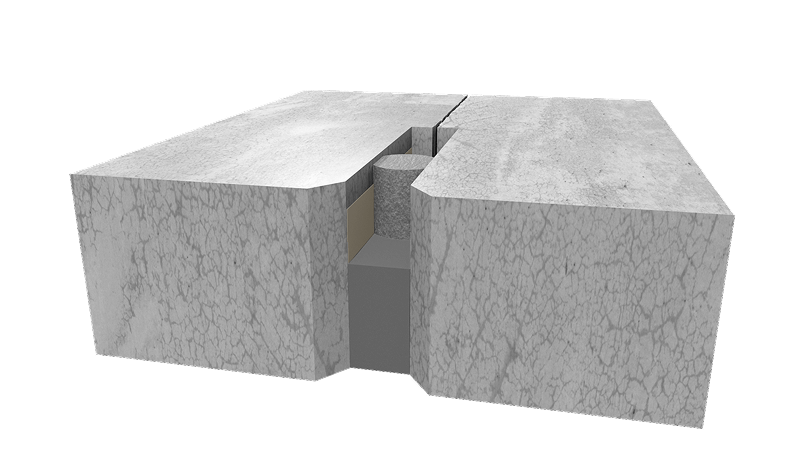

EUROLASTIC TC 30 G TRAFFIC
  • Joint sealant: EUROLASTIC TC 30 G
  • Primer: EUROLASTIC PRIMER U 12 G (absorbent substrates) EUROLASTIC PRIMER S2 (non-absorbent substrates) EUROLASTIC PRIMER ZM (heavy corrosion protection primer)
  • Backfill material: PE round chute (closed-cell)

To the product

SYSTEM HIGHLIGHTS:

  • Fast curing (2-component system)
  • Highly chemically resistant
  • 40% polysulfide content
  • High temperature resistance
  • over 10 years service life
  • Approved by the building authorities in accordance with the Water Resources Act (WHG)

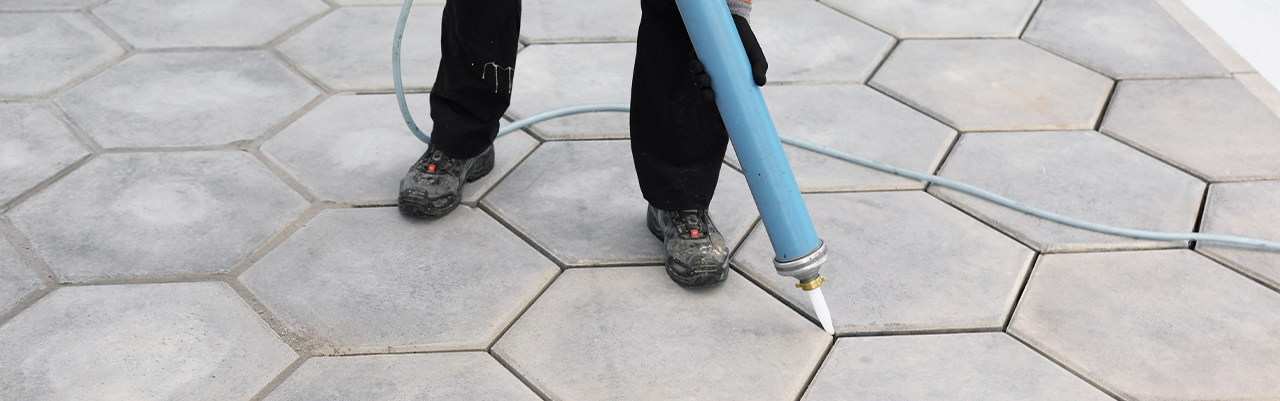

EUROLASTIC TC 30 G is a pourable, elastic 2-component polysulphide-based joint sealant specially formulated for areas subject to the highest loads.

With its very high chemical resistance, elasticity and liquid-tight properties, it ensures reliable operational safety even at temperatures from minus 50 °C to plus 120 °C.

The cold-vulcanizing properties of polysulphide make it possible to seamlessly integrate joint renovations or one-day sections into existing surfaces – without weak points in the bond between the old and newly applied polysulphide joint sealant. This means that repairs can be carried out quickly, safely, liquid-tight and sustainably.

Thanks to the high polysulphide polymer content of over 40 %, EUROLASTIC TC 30 G is extremely resistant to chemicals, UV radiation, weathering and ageing.

EUROLASTIC TC 30 G

EUROLASTIC TC 30 S

Stable, 2-component polysulphide-based joint sealant

EUROLASTIC TC 30 G TRAFFIC
  • Joint sealant: EUROLASTIC TC 30 S
  • Primer: EUROLASTIC PRIMER U 12 G (absorbent substrates) EUROLASTIC PRIMER S2 (non-absorbent substrates) EUROLASTIC PRIMER ZM (heavy corrosion protection primer)
  • Backfill material: PE round chute (closed-cell)

To the product

SYSTEM HIGHLIGHTS:

  • Stable (application on vertical or inclined surfaces)
  • Fast curing (2-component system)
  • Highly chemically resistant
  • 40% polysulfide content
  • over 10 years service life
  • Unique repairability due to cold vulcanization
  • Approved by the building authorities in accordance with the Water Resources Act (WHG)

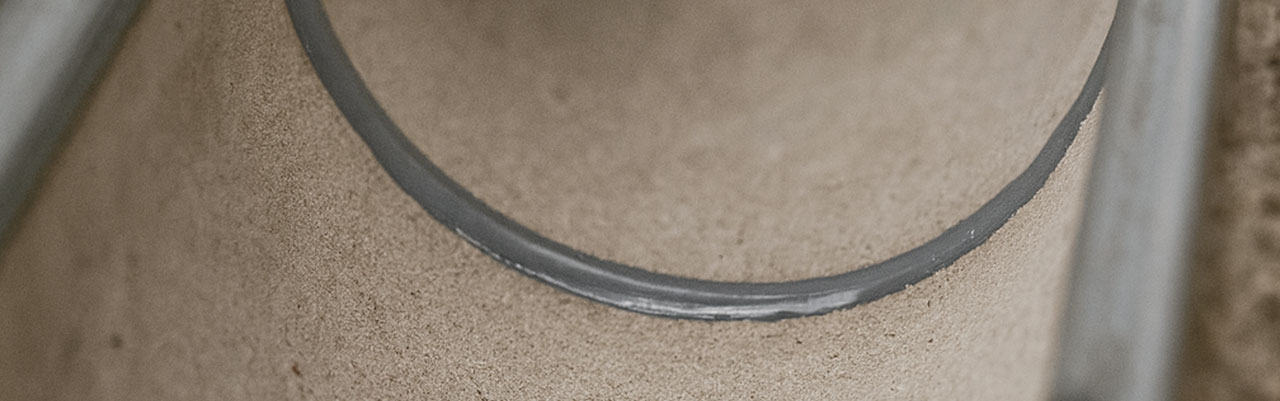

EUROLASTIC TC 30 S is a stable, high-quality 2-component polysulphide-based joint sealant developed for joints subject to heavy loads. Its stable consistency enables precise application, even on vertical or inclined surfaces, and makes it the ideal solution wherever pourable systems cannot be used – for example on gutter joints or surfaces with steep slopes.

Like EUROLASTIC TC 30 G, EUROLASTIC TC 30 S also impresses with its very high chemical resistance. EUROLASTIC TC 30 S is also used as a high performance adhesive for the installation of polysulphide-based waterstops.

EUROLASTIC TC 30 S is therefore the perfect complement to EUROLASTIC TC 30 G and ensures that a highly elastic, liquid-tight and reliable joint seal is achieved even under difficult installation conditions.

EUROLASTIC TC 30 G

EUROTEK TK joint tape WHG / LAU

High performance polysulphide-based joint tape

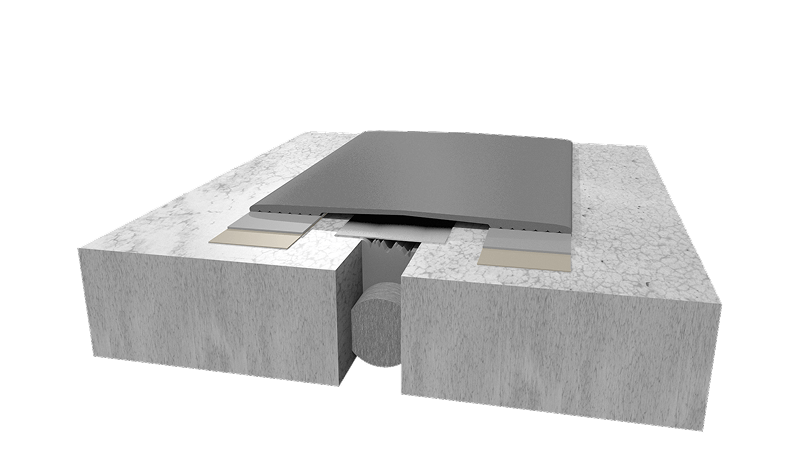

EUROLASTIC TC 30 G TRAFFIC
  • Joint tape: EUROTEK TK joint tape WHG/LAU
  • Adhesive: EUROLASTIC TC 30 S – gray
  • Primer: EUROLASTIC PRIMER U 12 G (absorbent substrates) EUROLASTIC PRIMER S2 (non-absorbent substrates) EUROLASTIC PRIMER ZM (heavy corrosion protection primer)
  • Separating tape: EUROTAPE (aluminum laminated)
  • Existing defective sealant (in the event of renovation)

To the product

SYSTEM HIGHLIGHTS:

  • Pre-assembled – simple processing
  • Very high chemical resistance
  • Very high UV, weathering and ageing resistance
  • Highly elastic for maximum movement absorption
  • Excellent cold elasticity down to -50 °C
  • over 10 years service life
EUROTEK TK Joint Tape WHG is a highly elastic, chemical-resistant, polysulphide-based sealing system for sealing expansion joints in LAU systems in accordance with WHG. It is ideal for sealing large joint widths, complex geometries, strong component movements or difficult bonding surfaces.

In combination with the specially matched EUROLASTIC TC 30 S grey adhesive system, a permanently elastic, liquid-tight joint seal is created that is approved by the building authorities.

It is laid in areas not subject to traffic to seal vertical and horizontal joints and to seal floor and wall connections.

EUROLASTIC TC 30 G

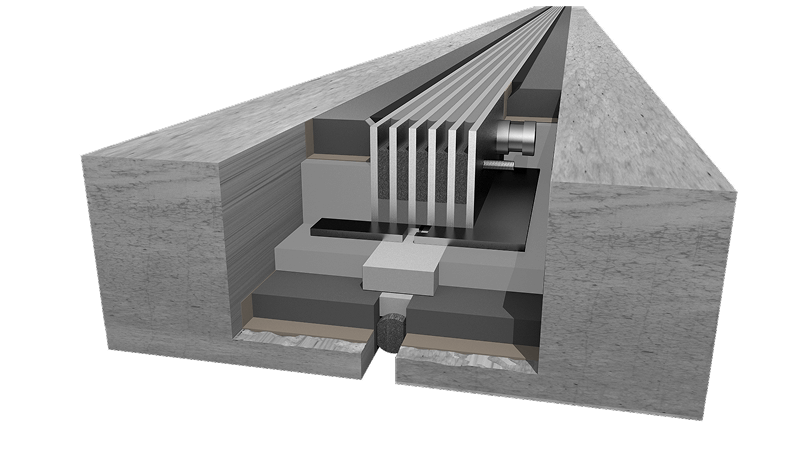

EUROX EDS JOINT PROFILE WHG

Heavy-duty joint profile

EUROLASTIC TC 30 G TRAFFIC
  • Joint profile: EUROX EDS expansion joint profile
  • Sealant: EUROLASTIC TC 30 G/S
  • Mortar: EUROREPAIR PC 96 WHG
  • Adhesion primer: EUROREPAIR HG 96 WHG
  • Potting compound: EURODUR EPV 0411 GROUNDFIX
  • Compriband Supplied ex works
  • Mortar: EUROREPAIR PC 96 WHG
  • Adhesion primer: EUROREPAIR HG 96 WHG

To the product

SYSTEM HIGHLIGHTS:

  • approved by building authorities
  • Liquid-tight
  • Highly resistant to chemicals
  • Partially repairable
  • Resistant to weathering and corrosion
  • High movement and load absorption
  • Installation level (can be driven over without vibration)

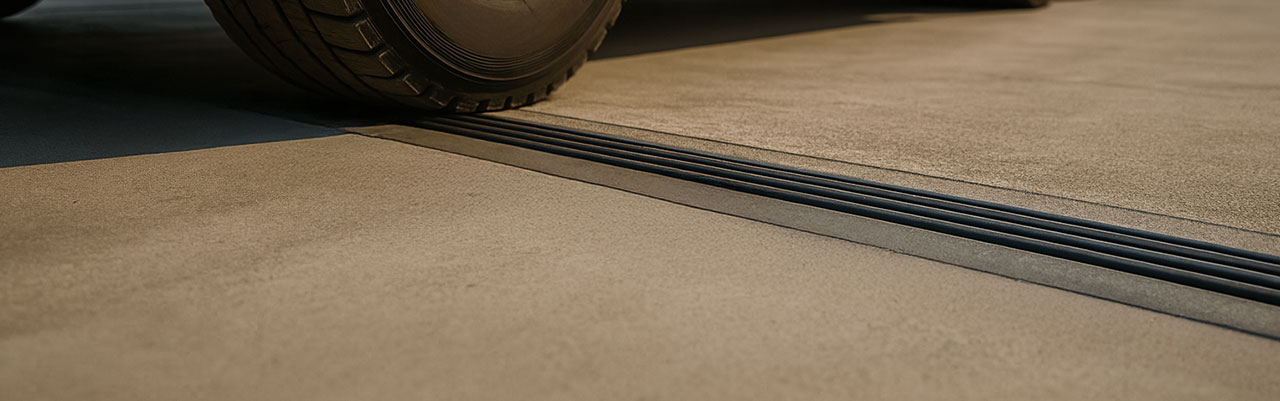

EUROX EDS joint profile WHG is a liquid-tight, highly mechanically and chemically resilient joint profile.

The EUROX EDS joint profile WHG is approved by the German Institute for Building Technology for use in areas subject to the Water Resources Act and is used in mechanically and chemically highly stressed component and connection joints. The Eurox EDS WHG joint profile is designed for both the renovation and new construction of liquid-tight surfaces such as LAU systems.

The combination of highly elastic, chemically resistant polysulphide sealing and the supporting V4A stainless steel lamellas creates a liquid-tight, mechanically highly resilient, vibration-free joint construction that can be driven over and was specially developed for use in LAU and HBV systems in accordance with the Water Resources Act.

The simple installation without welding and screws allows for level installation.

EUROLASTIC TC 30 G

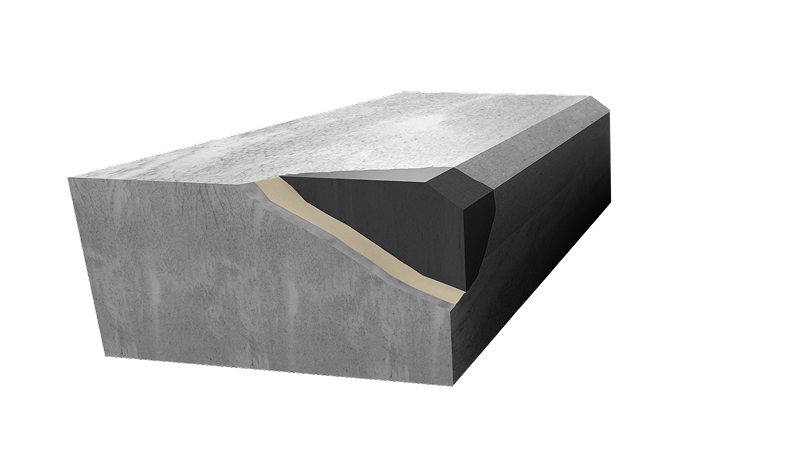

EUROREPAIR PC 96 WHG

High-strength 2-component epoxy resin mortar

EUROLASTIC TC 30 G TRAFFIC
  • Mortar: EUROREPAIR PC 96 WHG
  • Adhesion primer: EUROREPAIR HG 96 WHG

To the product

SYSTEM HIGHLIGHTS:

  • approved by building authorities
  • Easy processing, excellent smoothing behavior
  • Very high compressive strength (96N/mm²)
  • Fast, controlled curing – Short blocking times
  • Highly chemically resistant
  • High UV and weather resistance
  • liquid-tight

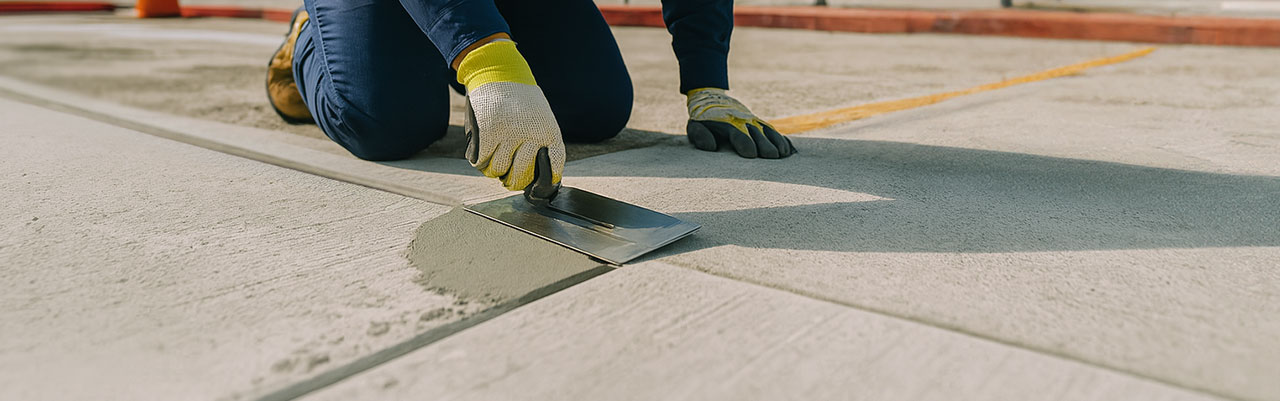

EUROREPAIR PC 96 WHG is a heavy-duty, building authority approved 2-component epoxy resin mortar that has been specially developed for demanding applications in LAU systems. Its optimally balanced formulation enables easy processing and fast, reliable curing.

The high-strength mortar is ideal for the repair of concrete, reinforced concrete and precast concrete elements, such as the reprofiling of joint edges or concrete upstands under high mechanical or chemical loads. Thanks to its very high compressive strength and modulus of elasticity adapted to the concrete, it offers excellent durability and longevity.

EUROLASTIC TC 30 G

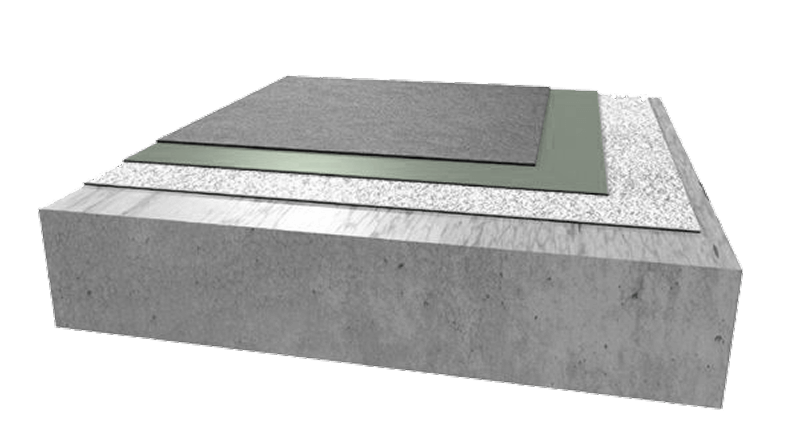

EUROTEX TC 97

Highly chemically resistant polysulphide lining

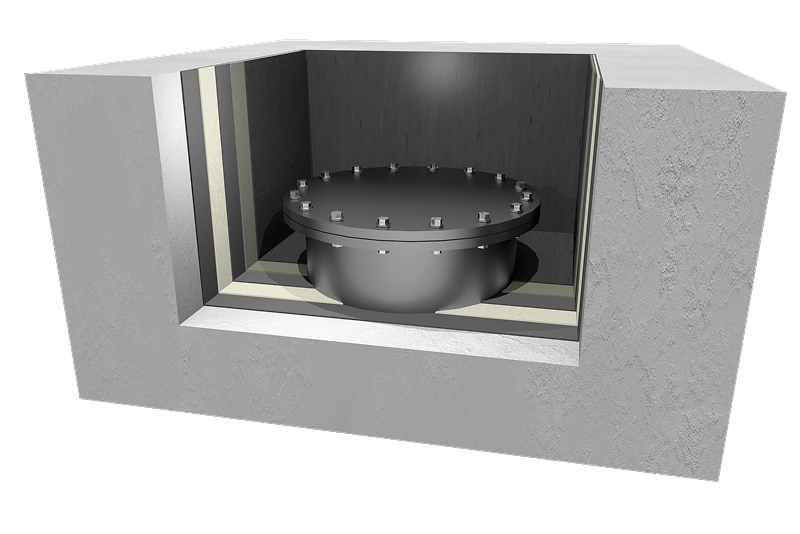

EUROLASTIC TC 30 G TRAFFIC
  • Top layer: EUROTEX TC 97 gray
  • Intermediate layer: EUROTEX TC 97 green
  • Backing fleece: EUROTEX fleece (blank or pre-sprayed)

To the product

SYSTEM HIGHLIGHTS:

  • Highly chemically resistant
  • Highly crack-bridging (laid decoupled over the crack)
  • High UV, weathering and ageing resistance
  • Partially repairable (through cold vulcanization)
  • 40% polysulfide content
  • Root fast

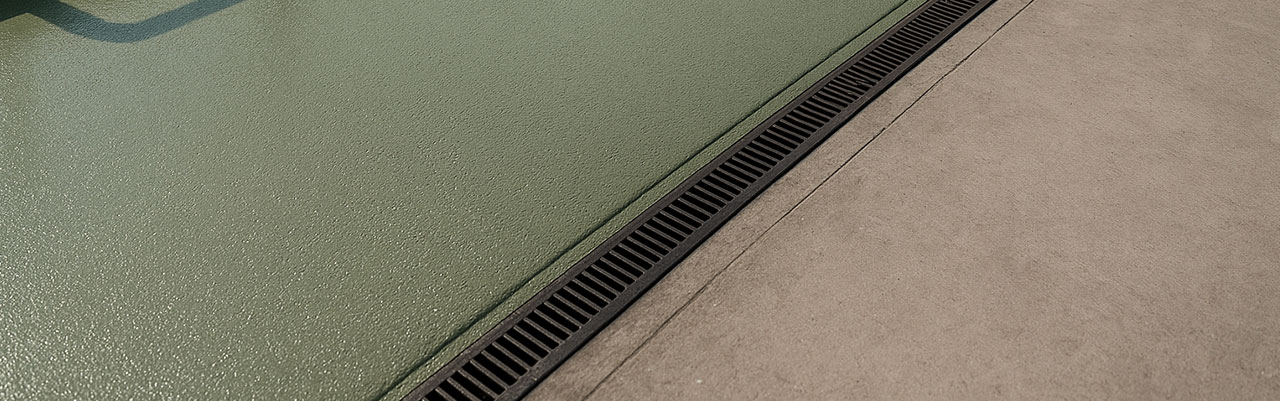

EUROTEX TC 97 is a polysulphide lining specially designed for sealing difficult substrates in areas not subject to traffic.

If the renovation of existing catch basins is not possible at all or only possible with enormous effort using conventional renovation systems due to irreversible contamination or structural defects such as cracks or subsidence, the EUROTEX TC 97 can be laid directly over the existing substrate without major substrate pre-treatment thanks to its integrated carrier fleece and only needs to be anchored/glued at certain points.

EUROLASTIC TC 30 G

EUROTEX TC 97 AS

Chemically highly resistant, electrostatically dissipative polysulphide lining

EUROLASTIC TC 30 G TRAFFIC
  • Top layer: EUROTEX TC 97 AS
  • Sealing: EUROTEX TC 97
  • Lamination: EUROPOX 0100
  • Backing fleece: EUROTEX fleece

To the product

SYSTEM HIGHLIGHTS:

  • Highly chemically resistant
  • Highly crack-bridging (laid decoupled over the crack)
  • High UV, weathering and ageing resistance
  • Partially repairable (through cold vulcanization)
  • 40% polysulfide content
  • Root fast
EUROTEX TC 97 AS is the electrostatically dissipative version of the EUROTEX TC 97 lining system and offers excellent properties for dissipating static charges in combination with the advantages of the EUROTEX TC 97 system.
